• Complete central security management
  Can manage thousands of NetScreen devices

• Secure configuration
  All management activities conducted via VPN tunnels, ensuring secure communication

• User-friendly interface
  Point-and-click and Web-based user interface reduces administrator ramp-up time

• Powerful monitoring and reporting
  Graphical reports can be generated with push-button ease

• VPN Wizard
  A new VPN Wizard for easy configuration of VPNs between two NetScreen devices. Users simply select two devices and choose whether to authenticate using a pre-shared key or default certificate. The wizard automatically sets addresses, tunnels, and policies. The VPN defaults to 3DES and Diffie-Hellman Group 2 and any setting can be modified using the normal VPN configuration tools.

The NetScreen-Global line of security management systems can be deployed to meet customers' requirements for managing any sized deployment of NetScreen security appliances and systems. The NetScreen-Global line allows the network, and security managers to simply and efficiently manage hundreds, and even thousands, of devices from a central console.

Key to the NetScreen-Global line is its ability to rapidly deploy products via its easy-to-use and intuitive policy management capabilities and problem resolution features. Further, the systems include service assurance features and the means to flexibly provide a variety of service offerings in order to meet the unique requirements of specific NetScreen appliances or systems.

Besides these powerful tools, the NetScreen-Global line offers critical reporting capabilities. For instance, a wide range of informative real-time and historical reports can be generated to provide critical insight into usage trends, performance baselines, and security events for any sized NetScreen integrated security solution deployment.

NetScreen-Global PRO is a highly scalable, open security management solution for service providers and large enterprises. The system can manage and monitor thousands of NetScreen security systems and appliances, making large-scale deployments a reality. Furthermore, its built-in redundancy and reliability ensure the integrity and security of mission-critical alerts and performance data. The product frees up service providers to focus on their core business while automating most of the challenging large-scale data collection, storage, and SLA reporting activities.

Provider-class Scalability

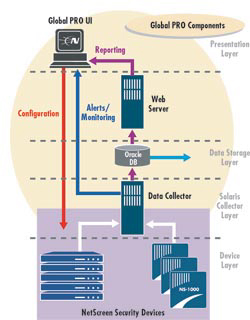

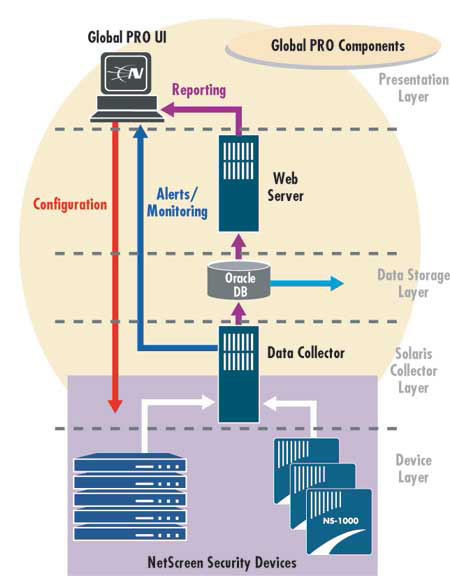

With its powerful multi-tier data collection and storage infrastructure, NetScreen-Global PRO can meet the demanding requirements of any high-performance security management offering. Whether a managed security services provider needing to manage thousands of client devices around the world, an Internet Data Center with multiple high-speed NetScreen security systems, or a large enterprise with thousands of remote offices around the world, the redundant Solaris™ based data collection architecture and TCP/IP-based communications infrastructure, ensures that no data will be missed or lost. For service providers who must provide accurate and timely reports on performance back to their customers, reliable data collection and storage is crucial. NetScreen-Global PRO supports an Oracle® back-end database for highly efficient and reliable data storage and retrieval. Finally, NetScreen-Global PRO features a central configuration management function to efficiently distribute hundreds or even thousands of policies to individual or groups of devices on a per-company group basis.

Click here to enlarge image

Role-based Monitoring

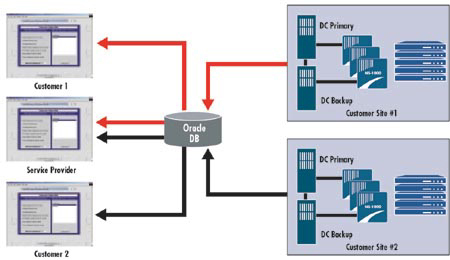

A critical challenge for and large-scale enterprises is providing a satisfactory amount of service level reports to their respective customers. NetScreen Global PRO offers a revolutionary role-based monitoring system to allow easy parsing of massive log and report files to provide the appropriate reports to each user of the system based on their specific privileges. Through the intuitive Global PRO Administrator Utility, the administrator sets up rules for the devices and systems that are associated with the appropriate customer or departmental domains. Next, they assign group specific login and passwords. The result is a powerful role-based administration system where each user is given exactly the relevant information they need in a timely manner, while allowing the administrator to access all of the data for overall security assessments and capacity planning purposes. Reports can be viewed on a per-device basis or data can be aggregated for all devices for a given customer or domain. Best of all, because all of the information is obtained from a common data store, service providers can allow their end customers to enjoy the same feature-rich views for their specific domain that the main administrator can see, while solid internal system security ensures that data integrity is maintained for each customer.

Click here to enlarge image

Extensive Interoperability
Because an industry-leading Oracle central database is used together with NetScreen's open database schema, data from the system can be easily integrated into many third party fault management, billing and reporting applications. This ensures that whatever reporting application a service provider or enterprise customer is using,
NetScreen-Global PRO can easily provide accurate and timely data. Furthermore, the product comes with out-of-the-box integration with Crystal Reports™ through a set of security-specific Web-based report templates. These templates can be freely branded and extended by the service provider to create their own look and feel to the standard reports. Finally, an add-on Netcool™ integration Module forwards NetScreen data seamlessly into any Micromuse Netcool console and features an advanced rule-set for data correlation and reduction to assist in root cause analysis.

NetScreen-Global Manager makes it easy to centralize management of NetScreen's integrated security systems and appliances. Network managers at enterprises can control security for multi-site device deployments from one location. This essential management application offers concurrent centralized configuration, status monitoring of hundreds of devices, graphical reporting of network activities and policy administration for NetScreen-1000 systems as well as the NetScreen-5XP, NetScreen-10, NetScreen-100 line of integrated security appliances. It is a cost-effective tool that enhances productivity and network security, saving both time and money. NetScreen-Global Manager simplifies Internet security management for mid-sized and large enterprise customers with its ability to centrally manage multiple sites, such as branch offices and telecommuter locations. It features an intuitive graphical user interface with point-and-click programming ease.

Centralized management
NetScreen-Global Manager provides easy-to-use Internet security management for medium to large networks. It offers continued ease of management as an organization's needs grow. With centralized configuration and installation of additional NetScreen devices, consistent device configurations can be ensured, reducing the cost of rollouts. NetScreen-Global Manager groups devices by location, division or customer. From a single location, managers can check the status of multiple NetScreen devices, monitor performance, troubleshoot existing configurations, or add remote sites to the network. All activities are conducted via VPN tunnels for the highest level of security.

Graphical reporting
With push-button ease, NetScreen-Global Manager provides a variety of real-time monitoring reports to maintain the highest level of network performance. By monitoring activity and continuous troubleshooting, NetScreen-Global Manager can facilitate planning for the network's optimal configuration.

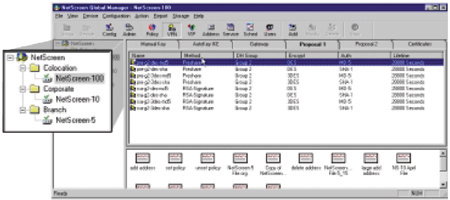

Click here to enlarge image



Click here to view NetScreen-Global Features

Minimum System Requirements:
NetScreen-Global PRO
Works with NetScreen-1000, NetScreen-100, NetScreen-10 and NetScreen-5XP (requires NetScreen OS software version 2.6 or later)

Solaris server:
Ultra 10 running Solaris 2.8

• 400 MHz
• 256 Mbytes of RAM
• 18 GB available disk space
• Ethernet adapter
• TCP/IP

Windows server:
IBM-compatible PC running the Windows NT®
Server 4.0, Service Pack 6 or higher or Windows®
2000 Server, Advanced Server, or Professional editions.

• 500 MHz Pentium® II or equivalent

• 128 Mbytes of RAM

• Ethernet adapter

• TCP/IP


Other third party software requirements:
Oracle 8i
Crystal Reports Developer Edition, version 8 (only required if using Crystal Report templates)
Microsoft® Internet Explorer 5.x (only required if using Crystal Report templates)
Microsoft Internet Information Server (only required if using Crystal Report templates)

NetScreen-Global Manager
Works with NetScreen-1000 (requires NetScreen ScreenOS software version 2.6 or later), NetScreen-100, NetScreen-10 and NetScreen-5XP (requires NetScreen OS software version 1.6 or later).
IBM-compatible PC running the Windows NT Server 4.0, Service Pack 6 or higher or Windows 2000 Server, Advanced Server or Professional editions.

• 500 MHz Pentium II or equivalent

• 64 Mbytes of RAM

• 3 Mbytes of disk space available for the software

• 5 Mbytes of disk space available for each NetScreen device
  you plan to monitor. This disk space is used to store the log
  files for each device.

• Ethernet adapter

• TCP/IP


NetScreen product warranty and services
NetScreen-Global security management software products standard software warranty is for a period of 90 days. Optional services are also available such as extended software subscription products. These are recommended to keep the system updated with the latest software enhancements and to ensure high availability for end-users.
